User Guide of Magento 2 Configurable Product Grid View Extension

General Configurations

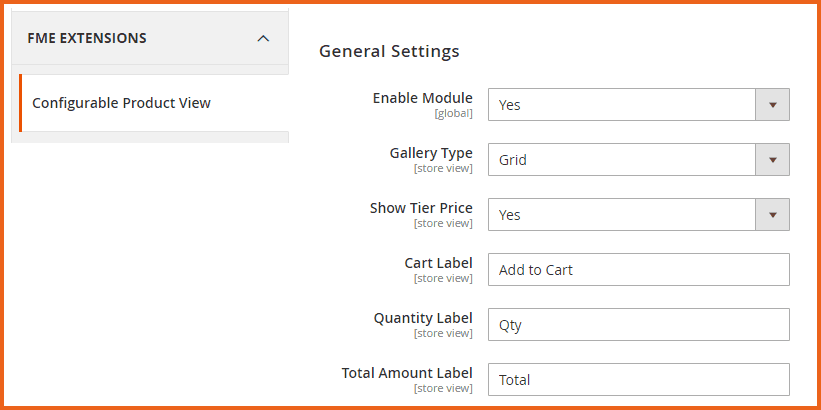

At the backend, go to FME EXTENSIONS > Configurations. Here you can find the extension configurations.

• Enable Module: Choose ‘Yes’ or ‘No’ to Enable or Disable the module
• Gallery Type: Choose the layout in which you want to display the features of a configurable product:
  • Grid
  • Show Tier Price: Choose ‘Yes’ or ‘No’ to Show or Hide the tier price on the product page
  • Cart Label: Enter a custom label for the cart button e.g. Add to Cart
  • Quantity Label: Enter a custom label for the quantity field e.g. Qty
  • Total Amount Label: Enter a custom label for the total amount field e.g. Total

Note: Our extension will only work for 2 attributes, i.e. Size & Color. If you have one or more than two attributes, then our extension will not work.

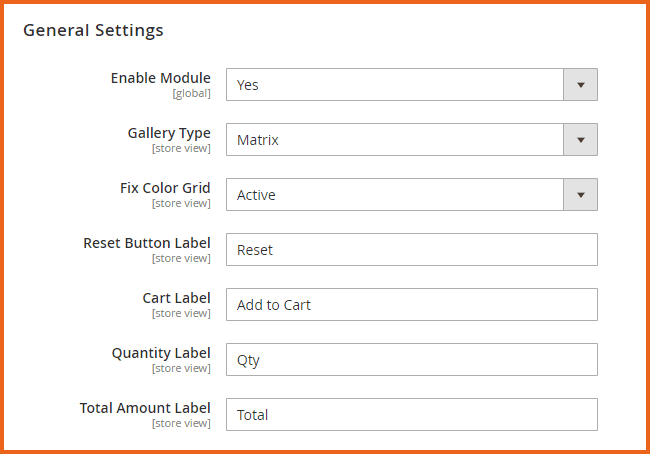

• Matrix
• Fix Color Grid: Select ‘Active’ or ‘Inactive’ to Enable or Disable the color grid on the frontend
• Reset Button Label: Enter a custom label for the reset button e.g. Reset
• Cart Label: Enter a custom label for the cart button e.g. Add to Cart
• Quantity Label: Enter a custom label for the quantity field e.g. Qty
• Total Amount Label: Enter a custom label for the total amount field e.g. Total

How to Enable Grid or Matrix View?

At the back end, go to CATALOG > Products. Here you will find all your store products in a grid. You can modify any configurable product by clicking on the Edit button.

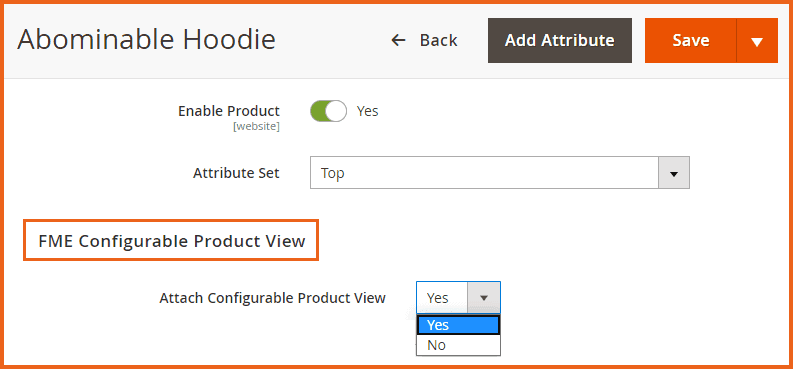

Now scroll down the page and click on the FME Configurable Product View tab. Here you have the option to Enable or Disable the configurable product view feature for this product on the frontend.

Frontend

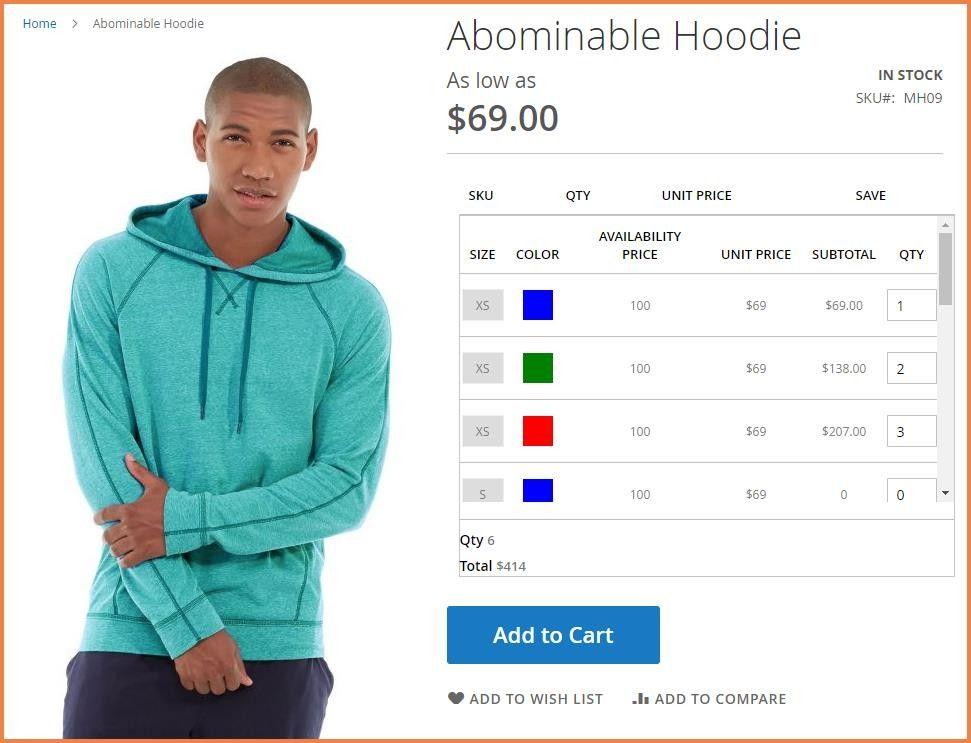

Grid View

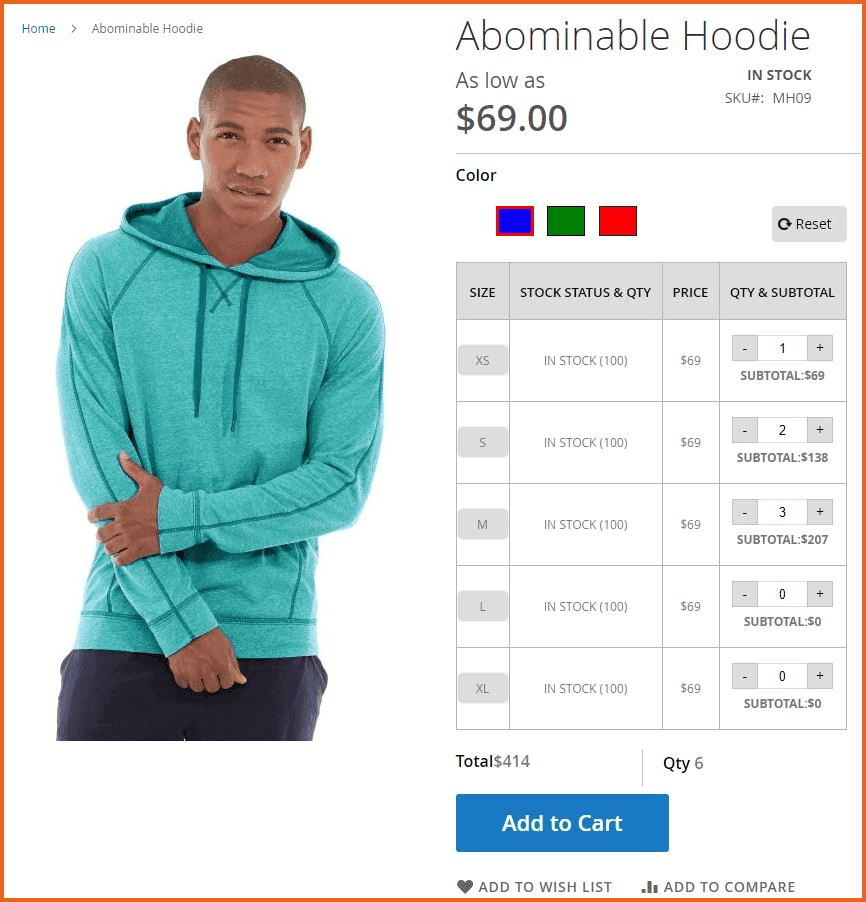

Matrix View

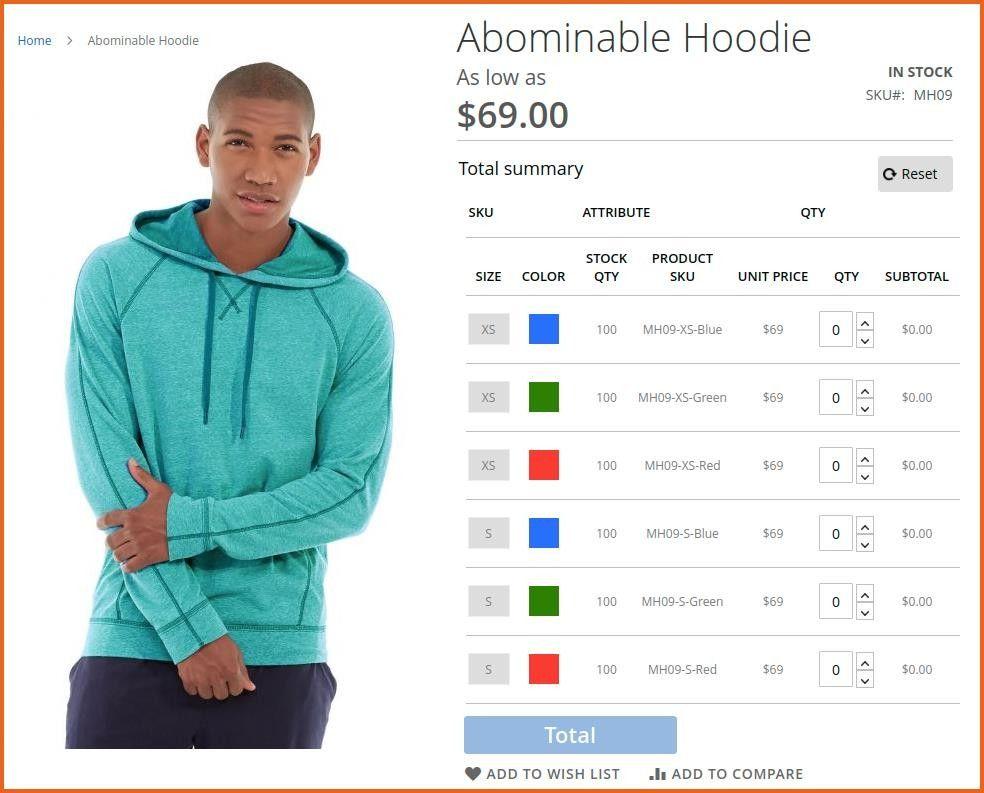

Color Grid

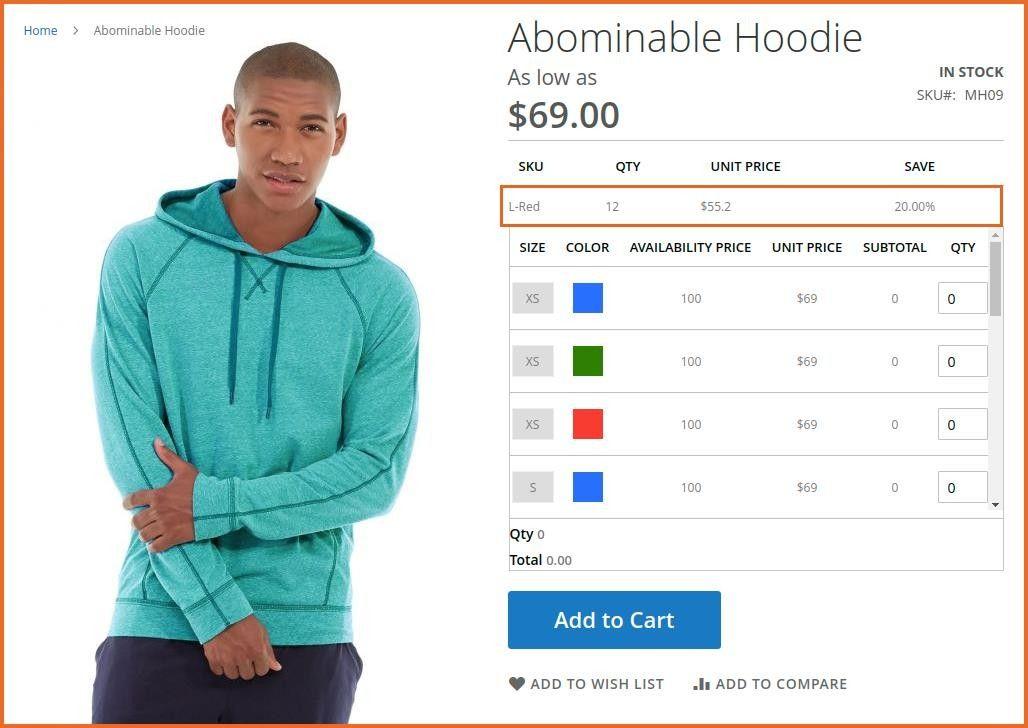

Tier Price
